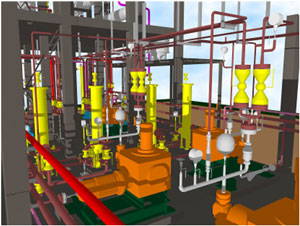

Piping systems in industries, automobiles, locomotives, marine vessels form the circulation system for various fluids. Well thought out and efficiently laid piping systems help in reduction of space utilization for setup, increased accessibility, enhanced safety and easier maintenance. It is imperative to visualize piping layouts using CAD tools before installation for specific purpose to garner above advantages.

Piping systems being so critical for desired operation of plants are subjected to different loads and stresses like pressure, temperature, vibrations and seismic conditions depending on the type of fluid, temperature of the fluid and surrounding conditions. Considering these conditions, our company caters to customers' requirements pertaining to piping system validation and optimization through pipe stress analysis services.

Outsource 3D Modeling & 3D Mechanical Drafting Services to Optimal Consulting

3D opens up a world of design that is otherwise hard to access. Working with designers and engineers to attain the best possible CAD designs, 3D designs or 3D models is one of the objectives of Optimal Consulting.

3D visualization of CAD tools brings life and clarity into the design objectives with respect to interference, clearance, tolerance aspects, aesthetics and helps communicate ideas more effectively.

3D Product Presentation Services

Get A Free Quote / Need Help

Get A Free Quote / Need Help

Outsource to us and experience the difference with our "value for money" engineering solutionsSave 40% on your project cost by outsourcing your Engineering design related requirements to us. E-mail us at info@optimalconsulting-lb.com to view more samples of our work.
